High efficiency low cost salt fluid bed dryer/tea and corn germ vibrating fluid bed drying machine

1 Set
MOQ
$4,600.00(>=1 Sets)
Prix

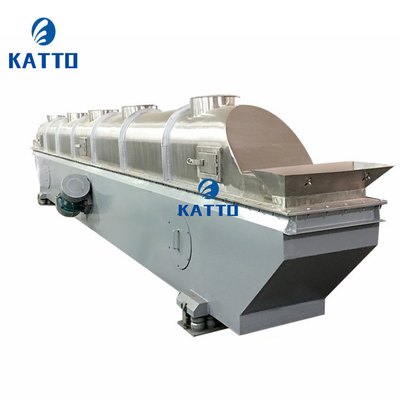

High efficiency low cost salt fluid bed dryer/tea and corn germ vibrating fluid bed drying machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Type: Fluid Bed Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: 380V
Power: 3.7*2
Dimension(L*W*H): 7500*1200*2500
Key Selling Points: High Safety Level
Warranty: 1 Year
Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops
After-sales Service Provided: Online support, Video technical support
Weight: 5190kg
Certification: ce
name: Tea and maize germ Vibrating fluidized bed drying machine
Raw material: 304 Sainless Steel
Function: Continuous drying
Usage: Food Used
Heating source: electric
Color: Customer's Request
Material: Stainless Steel
Feature: High Efficiency Low Cost
Capacity of vapor moisture: 200-250kg/h
Installation: Engineer Guide
Informations de base
Certification: ce
Conditions de paiement et expédition
Packaging Details: we use wooden box to load Tea and maize germ Vibrating fluidized bed drying machine
Supply Ability: 300 Set/Sets per Day Tea and maize germ Vibrating fluidized bed drying machine
Description de produit
Products Description

Work principle of ZLG Vibrating Fluid Bed Dryer

Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchanging with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet.

Application of ZLG Vibrating Fluid Bed Dryer

1. Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid,maleic acid and so on.
2. Foodstuff and construction material industries: distiller's grains, monosodium, edible sugar, edible salt, mine residue, bean,seeds and so on.
3. Also can be used for material cooling, humidification etc.

Features of fluid bed dryer for breadcrumb/granule drying machine

Quick-open structure will be adopted in it, the upper bed can be moved easily and it is convenient for cleaning.
The bed board was made with laser punching technology, it effectively avoid deformation by common punching technology.
The lower bed is supported by stainless steel seamless tube. It’s more strong.
Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary dryer ,the energy can be saved about 30%.
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
The fluidized state is stable and no dead angle and phenomenon of broken out.
It is good in regulation and wide in suitability. The thickness and moving speed in the machine and the amplitude change speed of the material can be steeples regulated.
It is small for damaging the surface of raw material. The machine can be used for drying materials that are easy broken. The drying effect can not be affected even materials gave anomalous shape.
It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. So that keeps the environment clean.
Product Paramenters
model
area of fluidized bed (m2)
temperature of inlet air
temperature of inlet air
capacity to vapor moisture(kg/h)
power
ZLG-3*0.3
0.9
70-140
40-70
20-35
0.8*2
ZLG-4.5*0.3
1.35
70-140
40-70
35-50
0.8*2
ZLG-4.5*0.45
2.025
70-140
40-70
50-70
1.1*2
ZLG-4.5*0.6
2.7
70-140
40-70
70-90
1.1*2
ZLG-6*0.45
2.7
70-140
40-70
80-100
1.5*2
ZLG-6*0.6
3.6
70-140
40-70
100-130
1.5*2
ZLG-6*0.75
4.5
70-140
40-70
120-170
2.2*2
ZLG-6*0.9
5.4
70-140
40-70
140-170
2.2*2
ZLG-7.5*0.6
4.5
70-140
40-70
130-150
2.2*2
ZLG-7.5*0.75
5.625
70-140
40-70
150-180
3.0*2
ZLG-7.5*0.9
6.75
70-140
40-70
160-210
3.0*2
ZLG-7.5*1.2
9.0
70-140
40-70
200-260
3.7*2
