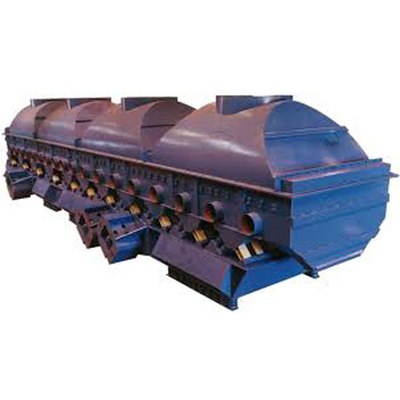

Hot Sale zlg model vibrating refined salt fluid bed dryer fluidized bed dryer
WORKING PRINCIPLE
The raw material is fed into the dryer from the feeding inlet and the material will continuously moving along with the fluidized
bed level under action of vibration. The hot air passes through fluidized bed and carries out heat exchange with damp raw
materials. The wet air is exhausted out by the cyclone separator and the dried material will be discharged from the discharge
outlet.
APPLICATION
This dryer is widely used for drying, cooling, wetting of the products in light industry, chemical industry, pharmaceutical
industry, foodstuff, and etc.
Applicable Materials:
Boric Acid, Borax, Dihydroxybenzene, Malic Acid, Maleic Acid, Monosodium Glutamate, Oxalate, Potassium, Permanganate, Sesame,
Pentaerythritol, HPAM, Hypha Protein, Sodium Sulfate, Sodium Borate, Plastic Archon, Catalyst, Baking Soda, Detergent, Quartz
Sand, Bean Pulp, Edible Sugar, Refine Salt, Bean, Seeds, Mining Slag, Activated Clay, Compound Fertilizer, and etc.
FEATURES
1) The vibration is created by vibrating motor which is stable in operation, easy for maintenance, low noise, and long service
life.
2) The material is being heated evenly and the heat exchange is fully used which ensured high drying capacity. The energy
consumption is 30% lower compare to the common dryers.
3) The adjustability of the dryer is good and it is widely used in different industries. The material thickness, moving speed
inside the dryer, and amplitude can be adjusted.
4) The damage to the material surface is small so the dryer can be used for fragile materials. The irregular particles will not
affect performance of the dryer.
5) A fully enclosed structure will effectively prevent cross contamination between the material and the air environment.
6) Multiple series connection is optional if the material contents high moisture and required high capacity; such as
Polyacrylamide.
Model | Area of fluidized-bed(m²) | Temperature of air inlet (°C) | Temperature of air outlet (°C) | Capacity to evaporate | Vibration motor | ||
Moisture (kg/h) | Model Power (Kw) | ||||||
ZLG3×0.30 | 0.9 | 70-140 | 40-70 | 20~35 | YZS8-6 | 0.75×2 | |
ZLG4.5×0.30 | 1.35 | 70-140 | 40-70 | 35~50 | YZS10-6 | 0.75×2 | |
ZLG4.5×0.45 | 2.025 | 70-140 | 40-70 | 50~70 | YZS15-6 | 1.1×2 | |
ZLG4.5×0.60 | 2.7 | 70-140 | 40-70 | 70~90 | YZS15-6 | 1.1×2 | |
ZLG6×0.45 | 2.7 | 70-140 | 40-70 | 80~100 | YZS15-6 | 1.1×2 | |
ZLG6×0.60 | 3.6 | 70-140 | 40-70 | 100~130 | YZS20-6 | 1.5×2 | |
ZLG6×0.75 | 4.5 | 70-140 | 40-70 | 120~140 | YZS20-6 | 2.5×2 | |
ZLG6×0.9 | 5.4 | 70-140 | 40-70 | 140~170 | YZS30-6 | 2.2×2 | |
ZLG7.5×0.60 | 4.5 | 70-140 | 40-70 | 130~150 | YZS30-6 | 2.2×2 | |
ZLG7.5×0.75 | 5.625 | 70-140 | 40-70 | 150~180 | YZS40-6 | 3.0×2 | |
ZLG7.5×0.90 | 6.75 | 70-140 | 40-70 | 160~210 | YZS40-6 | 3.0×2 | |
ZLG7.5×1.2 | 9 | 70-140 | 40-70 | 200~260 | YZS50-6 | 3.7×2 | |
ZLG7.5×1.5 | 11.25 | 70-140 | 40-70 | 230~330 | YZS50-6 | 3.7×2 | |
ZLG8×1.8 | 14.4 | 70-140 | 40-70 | 290~420 | YZS75-6 | 5.5×2 |
1. In the mesh belt dryer system, the following data can be a special set and adjusted in order to achieve the best drying effect: heating temperature, air flow, staying time.
2. Agility specified: we can add mesh belt washing system and product cooling system in mesh belt dryer system.
3.Agility operating: after conveying on mesh belt, wet material is dried in a totally sealed chamber during the whole drying process. Working condition is good because the system does not have powder leaking outside.
4. When wet material loaded in conveying belt, the relative position between every single material is quite stable. So for every single material, drying time is almost the same. This is especially suitable for drying that product that needs good color and uninformed water content. Additionally, during a drying process, the product will not be heavily shocked and vibrated, so granule size of granule will not break down. So this kind of mesh belt dryer is especially suitable for that product that should keep the good shape.
5. Haomai mesh belt dryer can also bake, cook and cooling raw material besides other than drying function.
6. Haomai mesh belt dryer designed intelligent air distribute construction in order to separate hot air into every single material uninformed.
7. Total construction is not complicated by Rank design. Through our human design principle, mesh belt dryer is easy for assembly, each for maintenance and transportation.
1, The vibration source is driven by the vibration motor, smooth operation, easy maintenance, low noise, long life.
2, Fluidized symmetry, no dead space, and blowing phenomenon, you can get a uniform drying, cooling products.
3, Adjustable good, wide face to adapt. Material layer thickness and in the machine moving speed and full amplitude changes can achieve stepless length adjustment.
4, The damage to the surface of the material is small, can be used for fragile material drying; When dry irregular particles it does not affect the work efficiency.
5, The use of a fully enclosed structure, effectively prevent the material and air cross-contamination, the operating environment is very clean.
6, Mechanical efficiency and high thermal efficiency, energy-saving effect is better than the average drying device, it can save 30 to 60% energy.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 11.8 (L) * 2.13 (W) * 2.18 (H) | |
Weight | 7T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 11.8(L) * 2.13 (W) * 2.18 (H) | |
Weight | 7-9 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
