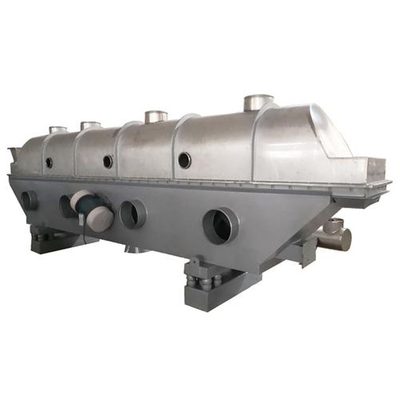

Low Price industrial zlg series dryer machine vibrating horizontal fluidized bed dryer
working principle
The raw material is fed into the dryer from the feeding end and moves forward continuously along under the function of the vibration. The hot air penetrates the fluid bed plate and dry damp raw material. Then the damp air is exhausted out through the cyclone separator and the dried raw material is discharged through discharge end.
Features
1. The height of the fluidizing chamber and dust collection is by the requirement.
2. The vibration is created by the motor. It is stable in operation and convenient in maintenance, low noise with a long lifespan.
3. High efficiency, the raw material is heated evenly with high efficiency and drying capacity is high. Compared with ordinary dryer, the energy can be saved about 30%.
4. It is good in regulation and wide in suitability. The thickness of raw material, moving speed and the amplitude can be adjusted.
5. It makes minimum damage to the surface of the raw material. The equipment can be used for drying easy broken raw materials. The dryer also suitable for drying irregular shape raw material.
6. The dryer adopts closed operation, protect the raw material from cross-contamination, it is in continual production.
Model | Area of fluidized-bed(m²) | Capacity to evaporate | Vibration motor | ||||
moisture (kg/h) | Model Power (Kw) | ||||||
ZLG3×0.30 | 0.9 | 70-140 | 40-70 | 20~35 | YZS8-6 | 0.75×2 | |
ZLG4.5×0.30 | 1.35 | 70-140 | 40-70 | 35~50 | YZS10-6 | 0.75×2 | |
ZLG4.5×0.45 | 2.025 | 70-140 | 40-70 | 50~70 | YZS15-6 | 1.1×2 | |
ZLG4.5×0.60 | 2.7 | 70-140 | 40-70 | 70~90 | YZS15-6 | 1.1×2 | |
ZLG6×0.45 | 2.7 | 70-140 | 40-70 | 80~100 | YZS15-6 | 1.1×2 | |
ZLG6×0.60 | 3.6 | 70-140 | 40-70 | 100~130 | YZS20-6 | 1.5×2 | |
ZLG6×0.75 | 4.5 | 70-140 | 40-70 | 120~140 | YZS20-6 | 2.5×2 | |
ZLG6×0.9 | 5.4 | 70-140 | 40-70 | 140~170 | YZS30-6 | 2.2×2 | |
ZLG7.5×0.60 | 4.5 | 70-140 | 40-70 | 130~150 | YZS30-6 | 2.2×2 | |
ZLG7.5×0.75 | 5.625 | 70-140 | 40-70 | 150~180 | YZS40-6 | 3.0×2 | |
ZLG7.5×0.90 | 6.75 | 70-140 | 40-70 | 160~210 | YZS40-6 | 3.0×2 | |
ZLG7.5×1.2 | 9 | 70-140 | 40-70 | 200~260 | YZS50-6 | 3.7×2 | |
ZLG7.5×1.5 | 11.25 | 70-140 | 40-70 | 230~330 | YZS50-6 | 3.7×2 | |
ZLG8×1.8 | 14.4 | 70-140 | 40-70 | 290~420 | YZS75-6 | 5.5×2 |
1. In the mesh belt dryer system, the following data can be a special set and adjusted in order to achieve the best drying effect: heating temperature, air flow, staying time.
2. Agility specified: we can add mesh belt washing system and product cooling system in mesh belt dryer system.
3.Agility operating: after conveying on mesh belt, wet material is dried in a totally sealed chamber during the whole drying process. Working condition is good because the system does not have powder leaking outside.
4. When wet material loaded in conveying belt, the relative position between every single material is quite stable. So for every single material, drying time is almost the same. This is especially suitable for drying that product that needs good color and uninformed water content. Additionally, during a drying process, the product will not be heavily shocked and vibrated, so granule size of granule will not break down. So this kind of mesh belt dryer is especially suitable for that product that should keep the good shape.
5. Haomai mesh belt dryer can also bake, cook and cooling raw material besides other than drying function.
6. Haomai mesh belt dryer designed intelligent air distribute construction in order to separate hot air into every single material uninformed.
7. Total construction is not complicated by Rank design. Through our human design principle, mesh belt dryer is easy for assembly, each for maintenance and transportation.
1, The vibration source is driven by the vibration motor, smooth operation, easy maintenance, low noise, long life.
2, Fluidized symmetry, no dead space, and blowing phenomenon, you can get a uniform drying, cooling products.
3, Adjustable good, wide face to adapt. Material layer thickness and in the machine moving speed and full amplitude changes can achieve stepless length adjustment.
4, The damage to the surface of the material is small, can be used for fragile material drying; When dry irregular particles it does not affect the work efficiency.
5, The use of a fully enclosed structure, effectively prevent the material and air cross-contamination, the operating environment is very clean.
6, Mechanical efficiency and high thermal efficiency, energy-saving effect is better than the average drying device, it can save 30 to 60% energy.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 11.8 (L) * 2.13 (W) * 2.18 (H) | |
Weight | 7T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 11.8(L) * 2.13 (W) * 2.18 (H) | |
Weight | 7-9 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
