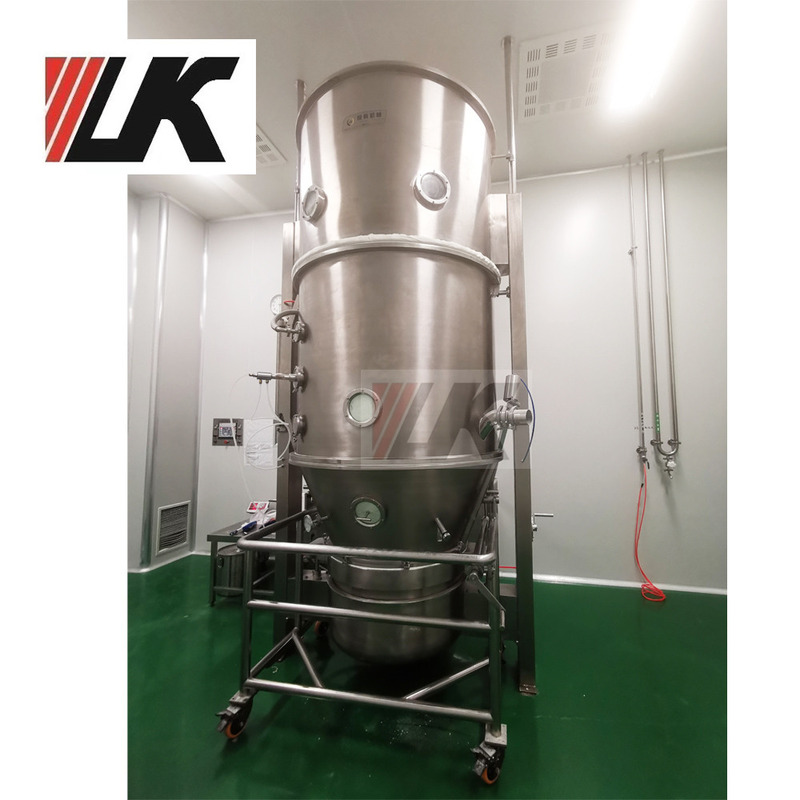

Medicine Processing FG-60 Automatic Pharmaceutical Tablet Granule Drying Machine Fluid Bed Dryer

FG-60 automatic pharmaceutical tablet granule drying machine fluid bed dryer

Application

Fluid-bed processing is mainly used for the mixing of powder material, drying and granulating (coating) in pharmaceutical, food, chemical, agricultural and sideline product processing industries, such as tablet, instant powder and condiment granules. The process of feeding and discharging material for this equipment should be finished in the airtight space to avoid the powder spreading to the working environment. It‘s controlled by PLC. For wet type granulating machine, it adopts negative pressure or air blast to make the finished granules enter the fluid bed for drying in airtight way.

Working Principle

Under the suction of induced draught fan, the heated and purified air will form into high-speed hot air flow to turn the materials in material chamber into fluid state under the function of stirring and negative pressure. The water will be evaporated quickly and discharged to dry the material.

Characteristics

Round structure inner fluid bed to avoid dead angle

The hopper can be set with stirring function to avoid wet material caking, especially for powder material, which is easy to clump together because of electrostatic adsorption.

It adopts manual rotation to discharge the finished products, convenient, fast and complete; it also can be designed with automatic inlet and outlet system as required.

This machine can be connected with high-efficiency wet mixing granulator and swing straightening granulator to suck the wet materials (powder and granules) into chamber for drying under the function of negative pressure, avoiding multiply transfers of materials.

Technical Parameter
