Construction works   Spray Coater Herb Vertical Feed Dryer Machine Lower Fluid Bed Granulator

1 set
MOQ
Construction works   Spray Coater Herb Vertical Feed Dryer Machine Lower Fluid Bed Granulator
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Product Type: Detergent Powder
Condition: New
Machine Type: Granulator
Output (kg/h): 120
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Motor, PLC, Pump
Voltage: 220V/380V
Dimension(L*W*H): 21660*1700*1660
Weight (KG): 1500
Power (kW): 18.5
Warranty: 1 Year
Key Selling Points: Accurate temperature control
Applicable Industries: Construction works , Energy & Mining, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Hotels, Machinery Repair Shops, Manufacturing Plant
Showroom Location: Argentina, Bangladesh, Brazil, Egypt, India, Indonesia, Kenya, Malaysia, Pakistan, Russia, Spain, Sri Lanka, Thailand, Turkey, United States
Material: SUS304/316L
Function: Granulating particle
Process: Make granule by spray adhesive
Capacity: 5-200kg/h
Standard: GMP
Informations de base
Conditions de paiement et expédition
Packaging Details: Shrink-parking within wooden case
Description de produit
Product Description

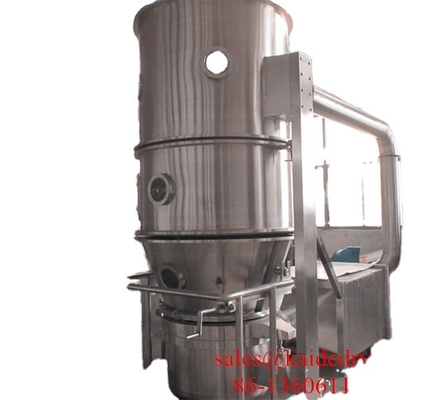

FL Series Fluidized Granulator for dry fluid-bed granulating machine

Product Application

Granulated pharmaceutical industry: tablet granule, granules, capsules, granules.
Granulated food industry: cocoa, coffee, milk powder, granule juice, spices and the like.
Oher industries granulation: pesticides, feed, fertilizer, pigment, dyestuff and so on.
Powdered or granular drying wet materials.


Principle

Material powder particles in the material container (fluidized bed) was boiling in a fluidized state by the heated air is preheated and mixed after purification, the binder solution sprayed into the spray, so some particles to contain a binder pellets, since the hot air drying of materials continue to make pellets in the water evaporates, the adhesive sets, this process is repeated continuously, form an ideal, uniform microporous spherical particles.

Item
Unit
5
60
120
200
500

Container
Volume
L
22
220
420
670
1500
Diameter
mm
400
1000
1200
1400
1800

Capacity
MIn
Kg
4
30
80
100
250
Max
Kg
6
90
160
300
750

Fan
Capacity
m³/h
1200
3000
4500
6000
8000
Pressure
mmH2O
375
950
950
950
950
Power
Kw
4
11
18.5
22
45
Steam consumption
Kg/h
23
141
211
282
451
Electrical heater
Kw
18
45
63
96
123
Compressed air need
m 3/min
0.9
Heating tempreture
Envionmrntal T.-120
Steam pressure
Mpa
0.3-0.6
Working time
Min
45-90
Weight
Kg
700
1100
1300
1500
2000
Overall dimension
M
1.2*0.7*2.1
1.85*1.4*3
2.2*1.65*3.3
2.34*1.7*3.8
3*2.25*4.4

Main Features

1)By powder granulation, improve liquidity, reduce dust;
2)By powder granulation to improve its solubility;
3)Mixing, granulating, drying can be completed in one step granulation machine;
4)Made of antistatic filter cloth, equipment operation safety;
5)Setting the pressure relief hole event of an explosion, equipment personnel from harm;
6)Equipment no dead ends, lighter, faster loading and unloading, rinse, to meet the GMP standard.

Certifications
History

2021

Through efforts in innovation, to achieve the industry's leading enterprises.

2018

With the municipal reform, I moved to the economic development zone.

2016

Each department area is perfect, from the domestic to the world.

2014

Established company, design and development of machinery and equipment.

Company Information



Detailed Images

Machine Parts

Name: Clean system

Brand: Kaide

Original: China

The water washing device is the option for the fluidized granulator,which is popular used in foodstuff,chenical,pharmaceutical and other areas.It is automatically operation.

Spray gun

Name: spray gun
Brand: Yantian
Original: Japan
The spray gun is made in Japan,who is mainly offer the different kinds of guns professionally.The spray gun can atomizing the liquid well to make the granule successfully.And long time use no any damage.

Sample port

Name: sample to check
Brand: Kaide
Original: China
The sample port is created by customer's need.Which is more simple and no pollution.It can avoid the material staying in the sample hole.Easy for cleaning,following to the GMP standard.

Main Features

Name: Polish
Brand: kaide
Original: China
Our equipment has excellent polish.The polishing worker has many years experience.More time came out the nice outlook.The good polish can make the equipment more value and higher class.

Packing & Delivery
Packaging
Size
320 (L) * 180 (W) * 200 (H)
Weight
1.0 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
320 (L) * 180 (W) * 200 (H)
Weight
1.0T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

Q: Are you trading company or manufacturer ?Wbat about your after-sale service?

A: We are factory.And we offer the before and after service.First,we can offer the lab or sample for you.Then inspection in my company,empty operation then do export.And our engineer will stay on site to do installation.Once broken,our person will arrive in 48 hours.Any spare parts broken,we will express in 12 hours.

Q: How long is your delivery time?

A: Generally speaking it is 10-20 days if the goods are in stock. or it is 30-45 days to make the machines based on your request.

Q: What is the minimum order quantity?

A: For our machines,you can make order based on your purchase schedule.Just only one set is welcome.

Q: What is your terms of payment ?

A: Payment<10000USD, 100% in advance. Payment>10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
