Caractéristiques

Type: Fluid Bed Drying Equipment

Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Wet Bait Powder Granule

Condition: New

Voltage: Customizable according to country standard

Power: Depends on model parameter

Dimension(L*W*H): Depends on model parameter

Key Selling Points: Automatic

Warranty: 1 Year

Weight (KG): 1000

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction worksÂ , Energy & Mining, Food & Beverage Shops, Advertising Company, Other

Showroom Location: None

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, Engine, Other

Evaporation Capacity(kg/h): Other

Heating Method: Electric/ Steam Heating

Material: SUS304, SUS304L, SUS316, SUS316L, Ti, Other, Stainless Steel

After-sales Service Provided: Service Machinery Overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service

Product name: Vibration fluid bed dryer

Keywords: Shaking fluid bed drying

Usage: Reduce Material's Moisture

Heating source: Steam+electricity

Raw material: Powder Granule

Feature: High Efficiency Low Cost

Function: Cooling+Drying+Dehumidity

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

Certification: CE, ISO9001

Informations de base

Certification: CE, ISO9001

Conditions de paiement et expédition

Packaging Details: Standard wooden case packing

Supply Ability: 40 Set/Sets per Month horizontal type Fluid Bed Dryer

Description de produit

Product Overview

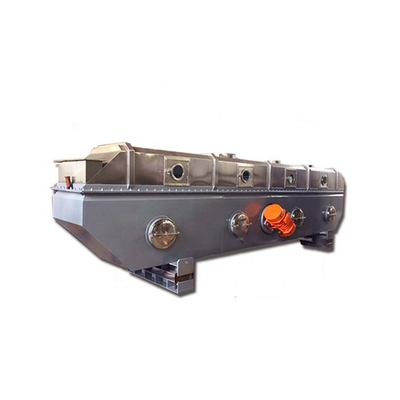

Continuous Horizontal Automatic Wet Bait Powder Granule Vibration Fluid Bed Dryer

Vibrating fluidized bed dryer is a kind of intensified drying device with special purpose. It is usually used for the final drying

of materials.As the material fluidization is assisted by mechanical vibration in the drying process, it is not only beneficial to the boundary layer turbulence and the enhancement of heat and mass transfer, but also ensures the drying equipment to work under the relatively stable flow mechanical conditions.This equipment has a good drying function, but also according to the needs of the process with material cooling, screening and conveying processes.At present, it has been widely used in sugar, medicine, fertilizer, chemical industry, plastics, dairy products, salt industry, and mining and metallurgy industries.The technology is basically mature and has been serialized.

FEATURES AT A GLANCE

VERSATILITY
AUTOMATIC
CONTINUOUS

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

SAFETY OPERATION

SIMPLE CONTROL

EASY MAINTENANCE

Right elevation

Front elevation

Left elevation

1.Raw material is heated evently and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.

2.The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.

3.The fluided state is stable and no dead angle and phenomenon of broken out.

4.It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the total amplitude can be adjusted through continuous variable speed.

5.It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken.The drying effect can not be affected even if raw materials have anomaly shape.

6. Adopts full sealed structure.It is effective to prevent from cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.

Working Principle

Raw material is fed into the fliud bed dryer from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration.The hot air passes through fluidized-bed and carries out heat exchange with damp raw material.Then the damp qir is exhausted out through cyclone separator and duster the dry raw material is discharged through discharge outlet.

Product Parameters

The parameter is for reference, for more accurate model select information, feel free to contact us!

APPLICATION SCOPE

The machine is suitable for drying, cooling, humidifying of powder and granule materials in chemistry, pharmaceutical, foodstuff, beverage and mining industries, also can be used for drying, cooling and humidifying simultaneously.

1.Pharmaceutical and chemical industries: All kinds of press tablet and granules, boric acid, borax, dihydroxy benzene, malice acid, malefic acid and so on.

2. Foodstuff industry: Distiller’s grains, monosodium, edible salt, mine residue, bean seed, mushroom essence, chicken essence, desiccated coconut and so on.

3. It can also used for raw materials to add up damp or cooling so on.

Raw material feature:

1: material particles are too big or irregular need to fluid.

2: lower speed fluidization is needed to keep particles complete,

3: materials are sticky or sensitive to temperature.

Product More Pictures

DETAIL PHOTOS

MACHINE USE SPOT

Company Profile

LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifugal Filter Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment, eg. food line, pharmaceutical line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.

Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.

Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.

We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :

1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired,
lifetime maintenance service is provided and at buyer’s cost.
