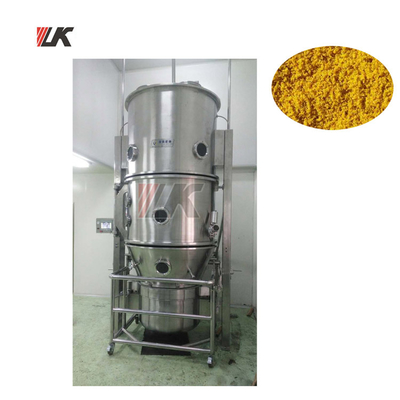

Name: Powder Lab Small Scale Agglomeration Continuous Spray Bed Dryer For Fluidized Milk Powder Granulator Machine Fluid Granulation
Brand: Powder Lab Small Scale Agglomeration Continuous Spray Bed Dryer For Fluidized Milk Powder Granulator Machine Fluid Granulation
SKU: FG-60
Price: 1 USD
Availability: InStock
Rating: 4.8 (199 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Condition: New

Type: Drying Machine

Application: Powder

Warranty: 1 Year

Key Selling Points: Multifunctional

Applicable Industries: Farms, Energy & Mining, Manufacturing Plant, Food & Beverage Factory, Pharmacy, Cosmetic, Ceramic & Feedstuff, Pharmacy, Cosmetic, Ceramic & Feedstuff, Pharmacy & Feedstuff, Cosmetic, Ceramic, Pharmacy, Feedstuff

Showroom Location: None

After-sales Service Provided: Free spare parts, Free spare parts, Free spare parts, Free spare parts, Free spare parts, Free spare parts, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Fre

After Warranty Service: Online support, Field maintenance and repair service, Video technical support

Local ServiceÂ Location: None

product name: For Milk Powder Fluidized Granulator Machine Fluid-bed Granulating

Model: FG-60

Material Tank Volume: 230L

Material Tank Diameter: 1000mm

Production Capacity: 10-70KG/batch

Power Supply: Three-phase, 380V 50HZ

Function: Granulating, Coating, Pelletizing and Drying

Other: Top spraying, bottom spraying and tangential spring can be added

Equipment Material: SS304/SS316

Certificate: CE

Informations de base

Certification: CE

Model Number: FG-60

Conditions de paiement et expédition

Packaging Details: The fluid bed dryer granulator is packed by standard exported wooden case.

Supply Ability: 25 Set/Sets per Month

Description de produit

Lab Continuous Small Scale Agglomeration Spray Bed Dryer For Milk Powder Fluidized Granulator Machine Fluid-bed Granulating

Technical Parameters

Model			FG-15	FG-30	FG-60	FG-120	FG-160	FG-200	FG-300
Material Tank	Volume	L	50	110	230	420	520	670	1000
Material Tank	Diameter	MM	480	750	1000	1200	1285	1400	1500
Production Capacity		KG/batch	5-15	15-30	10-70	60-120	120-160	160-240	200-300
Power Supply		Three-phase	380V/50HZ
Steam	Pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.3-0.6	0.4-0.6	0.4-0.6
Steam	Consumption	KG/h	15	60	100	180	180	280	400
Compressed Air	Pressure	MPa	0.4-0.7	0.4-0.7	0.4-0.7	0.5-0.7	0.5-0.7	0.4-0.7	0.4-0.7
Compressed Air	Consumption	KG/h	0.3	0.5	1.2	0.8	1.05	1.2	1.8
Draught Fan	Power	KW	5.5	11	15	18.5	18.5	22	37
Material Temperature		℃	Auto-control and auto-display
Application range			Mainly used for producing and drying the instant granules, tablets and capsules in both Chinese and western medicines.
Obtaining Ratio		%	≥99%
Product Moisture (after drying)		%	5‰-3%	1%-5%	1%-5%	1%-5%	5‰-5%	5‰-5%	1%-5%
Noise		dB	With isolating treatment, the noise of draught fan is less than 75 dB.
Material		Stainless steel for all the machine and SUS304 for surface with matte treatment, mirror-polish until Ra 0.3-0.5 inside.
Sealing Type		Head pressure type with pneumatic cylinder, good sealing effect.
Filtration of Inlet Air		It’s equipped with primary, medium and sub-high efficiency filters, so the air filtration level reaches 100000 grade (3μm).
Air Capacity Regulation		Frequency control to regulate the air capacity.
Steam Heater		Use steam to heat or electrical heating, the material of heater is SUS304.
Control Method		PLC control, frequency converter regulating the air capacity, touch screen operating system, Chinese operation interface.
Steam Angle Seat Valve		Famous brand with high temperature control precision.
GMP Standard		Designed and manufactured according to GMP standard, in accordance with GMP requirements.
Product Standard		According to JB/T13755-92 standard.
Machine Dimension		Refer to the installation drawing.

Detailed Photos

Product Description

FG (fluid bed drying machine), FL (fluid bed granulating and drying machine (top spray)), FLB (fluid bed coating and drying machine (bottom spray)) and WFB (fluid bed pelletizing and drying machine (tangential spray), all consists of bag shaking chamber, drying and spreading chamber, material chamber, air intake chamber, support frame, auxiliary heating system, ventilator unit and control system.

They're mainly used to granulate and dry granules in pharmaceutical, foodstuff, chemical, agricultural and sideline product processing industries. Such as granules for tablet, instant powder and condiment granules. The process of feeding and discharging material of this equipment should be finished in the airtight space to avoid powder spreading to the operation environment. It‘s controlled by PLC to granulate and dry in fluid bed.
